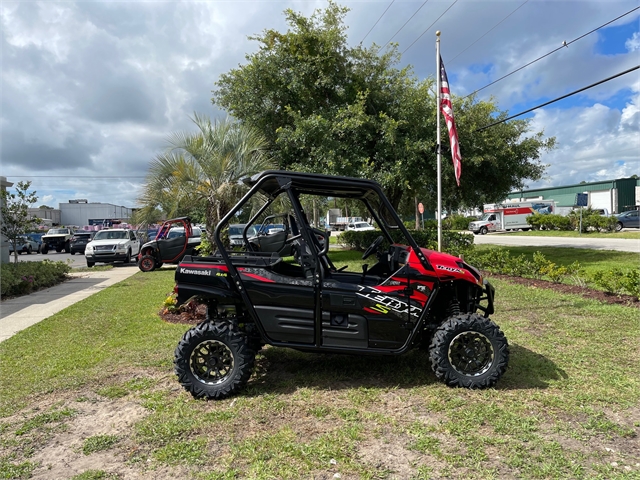

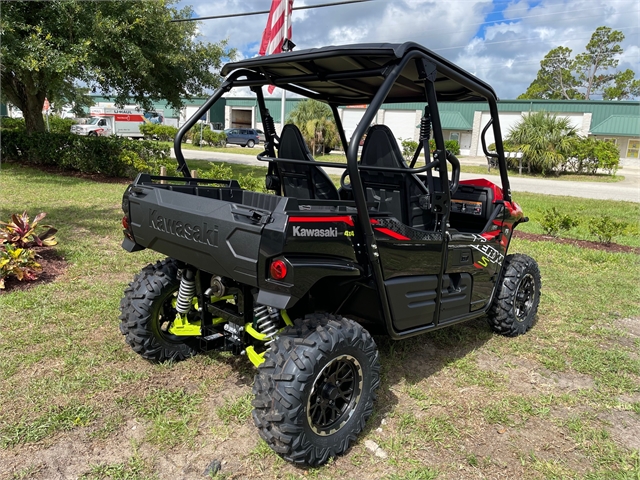

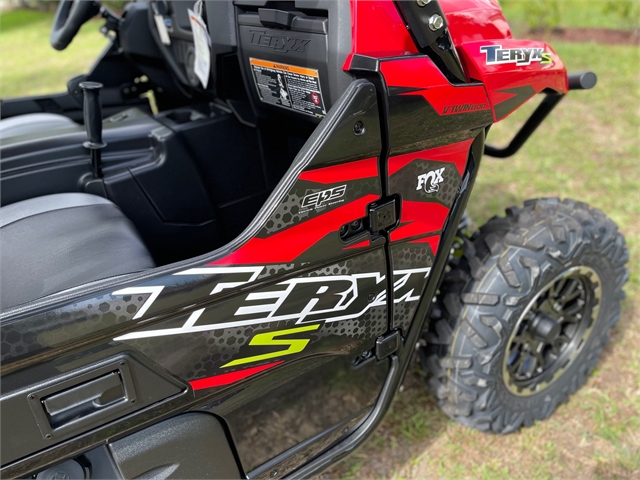

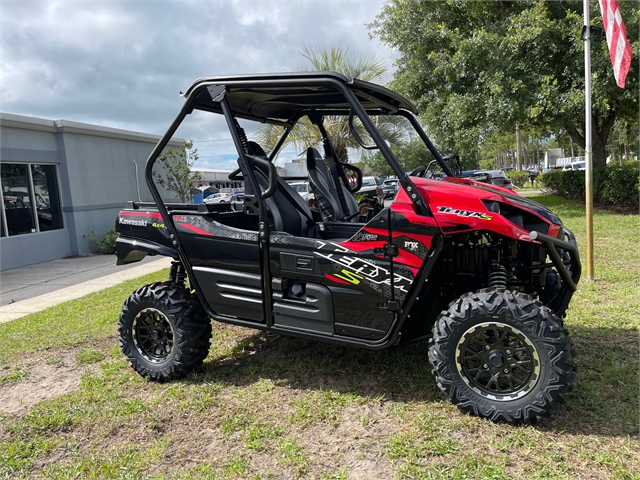

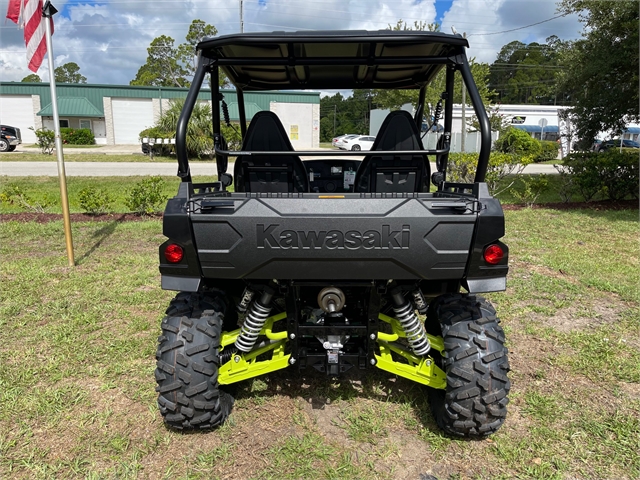

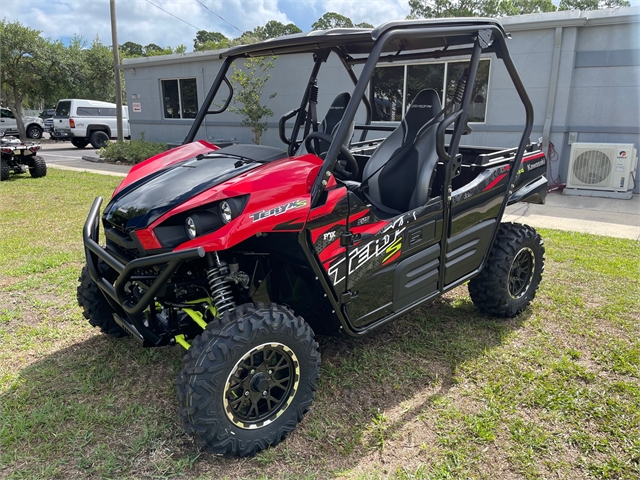

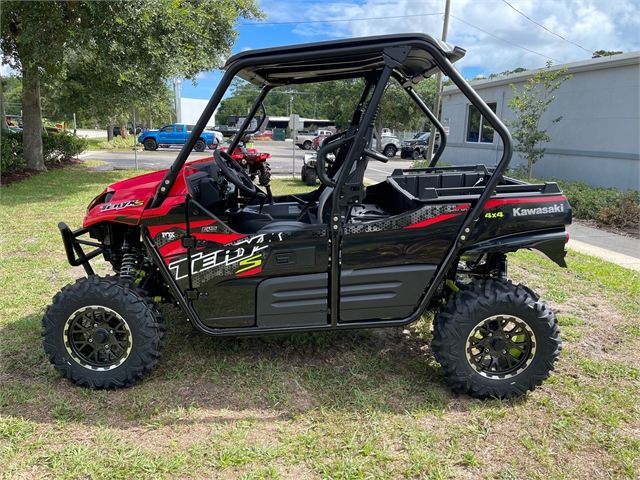

2023 Kawasaki Teryx S LE

PARTS AND ACCESSORIES NOT INCLUDED!

Stock #KM23N503110
MSRP: $16,899 USD
Discount: $2,000
Your Price: $14,899 USD
Price & Payment Details Hi, my name is and I'm interested in this 2023 Kawasaki Teryx S LE - PARTS AND ACCESSORIES NOT INCLUDED! . I'm in the area and you can reach me at or on my phone at .




  • Status:
    New
  • Vehicle:
    2023 Kawasaki Teryx S LE
  • VIN:
    JKBRFCJ17PB503110
  • Model Number:
    KRT800JPFAL
  • Color:
    Red
  • Stock Number:
    KM23N503110
  • Title:
    Clear
  • Location:
    Powersports St. Augustine
  • Warranty:
    Manufacturer's w/ Extended Available

BRAKES

  • Front Brake Diameter (in):
    7.9
  • Front Brake Diameter (mm):
    200
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Sealed Oil Bath Multi-Disc

DRIVE LINE

  • Differential Lock Location:
    Front
  • Driveline Type:
    Selectable 4X2 / 4X4
  • Limited Slip Differential Location:
    Front
  • Number Of Driveline Modes:
    2
  • Rear Unlocking Differential:
    Yes

ENGINE

  • Bore (in):
    3.35
  • Bore (mm):
    85
  • Carburetion Brand:
    Mikuni
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.7
  • Cooling:
    Liquid
  • Cylinders:
    2
  • Displacement (cc):
    783
  • Displacement (ci):
    47.8
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector Size (mm):
    36
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Regular
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    2.72
  • Stroke (mm):
    69
  • Torque (Ft Lbs):
    47
  • Torque (Nm):
    63.7
  • Torque RPM:
    5500
  • Valve Configuration:
    SOHC
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Bash Plate (Front):
    Yes
  • Body Material:
    Plastic
  • Brush Guard:
    Yes
  • Cab Canopy Material:
    Hard
  • Cab Door Material:
    Hard
  • Frame:
    Steel
  • Front Mud Guards:
    Yes
  • Full Length Skid Plate:
    Yes

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge
  • Temperature Warning Type:
    Light

LIGHTS

  • Type:
    LED

PAINT & FINISH

  • Metallic:
    Yes

SEATS

  • Headrest:
    Yes
  • Number Of Rows:
    1
  • Number Of Seats:
    2
  • Seat Material:
    Vinyl
  • Seat Type:
    Bucket

STEERING

  • Steering Control:
    Steering Wheel
  • Steering Type:
    Power

STORAGE

  • Bed Capacity (kgs.):
    272.2
  • Bed Capacity (lbs.):
    600
  • Bed Height (in):
    10.4
  • Bed Height (mm):
    264.2
  • Bed Length (in):
    27.6
  • Bed Length (mm):
    701
  • Bed Width (in):
    43.3
  • Bed Width (mm):
    1099.8
  • Cargo Bed Material:
    Polyethylene
  • Integral Tie-Down Hooks:
    Yes
  • Number Of Cupholders:
    4

SUSPENSION

  • Adjustment Type:
    Shock Mounted Adjustment
  • Front Adjustable Fork Pre-Load:
    Yes
  • Front Suspension Brand Name:

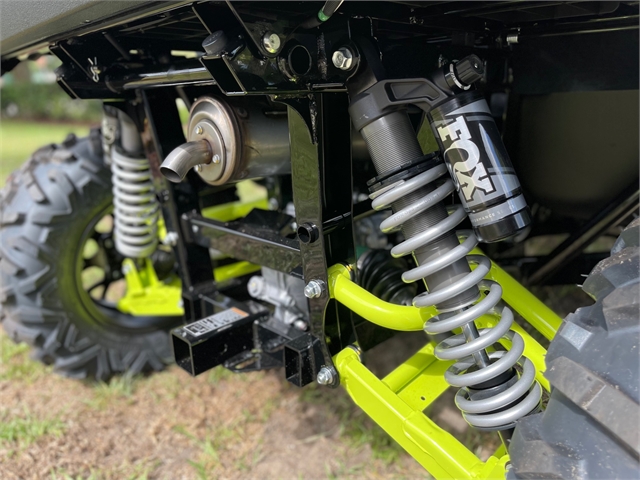

    Fox® 2.0
  • Front Suspension Type:
    Double A-Arm
  • Front Travel (in):
    10.7
  • Front Travel (mm):
    271.8
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Stabilizer Bar:
    Yes
  • Rear Suspension Brand Name:
    Fox® 2.0
  • Rear Suspension Type:
    Independent
  • Rear Travel (in):
    10
  • Rear Travel (mm):
    254

TECHNICAL SPECIFICATIONS

  • Fuel Capacity (gal):
    7.9
  • Fuel Capacity (l):
    29.9
  • Ground Clearance (in):
    11.2
  • Ground Clearance (mm):
    284.5
  • Height (in):
    78.5
  • Height (mm):
    1994
  • Length (ft):
    9.84
  • Length (ft/ft):
    9
  • Length (ft/in):
    10.1
  • Length (in):
    118.1
  • Length (mm):
    2999.7
  • Payload Capacity (kgs):
    499
  • Payload Capacity (lbs):
    1100
  • Towing Capacity (kgs):
    589.7
  • Towing Capacity (lbs):
    1300
  • Turning Radius (ft):
    17.7
  • Wet Weight (kg):
    724
  • Wet Weight (lbs):
    1596.4
  • Wheelbase (in):
    88.2
  • Wheelbase (mm):
    2240.3
  • Width (in):
    62.6
  • Width (mm):
    1590

TRANSMISSION

  • Hi / Low Range:
    Yes
  • Primary Drive (Engine / Transmission):
    Belt
  • Primary Drive (Front Wheel):
    Shaft
  • Primary Drive (Rear Wheel):
    Shaft
  • Reverse:
    Yes
  • Transmission Type:
    Continuously Variable (CVT)

WHEELS & TIRES

  • Front Tire (Full Spec):
    Maxxis® Bighorn
  • Front Tire Diameter (in):
    27
  • Front Tire Width:
    9
  • Front Wheel Diameter:
    14
  • Rear Tire (Full Spec):
    Maxxis® Bighorn
  • Rear Tire Diameter (in):
    27
  • Rear Tire Width:
    11
  • Rear Wheel Diameter:
    14
  • Tire Brand:
    Maxxis®
  • Wheels Composition:
    Aluminum
